Phosphine Personal Monitor
Phosphine Personal Monitor

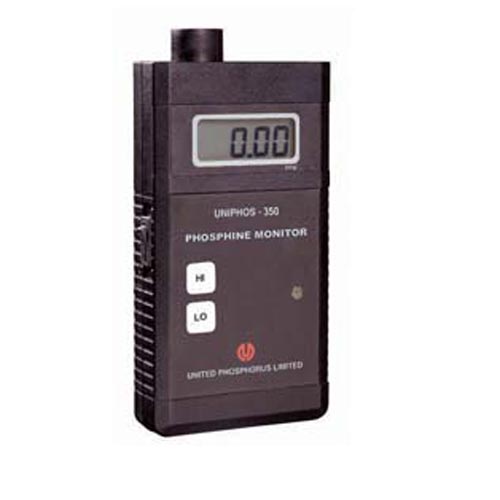

The Uniphos 350 Phosphine Personal Gas Monitor is a simple and compact instrument, designed to detect the presence of Phosphine in the fumigation area.
Product & Technology News
- Fumigators
- Warehousing Companies
- Grain Silo owners
- Tobacco industry
-
Gas Related Specifications
- Gas Detected - Phosphine
- Concentration Range - 0 – 20 ppm
- Resolution - 0.01 ppm
- Detection Principle - Sealed Electrochemical Sensor
- Accuracy - Inherently +/- 2% (but also depends on the accuracy of the calibration gas & method)
- Response Time (T90) - 15 sec
- Sampling - Diffusion
- Display - 3 ½ Digit LCD Display with low battery display
- Hi & Lo Alarm View Keys - To view the alarm set-points
- Electronic Alarm - 85 db Audio Alarm, Visual LEDs
- Power Source - One 9V replaceable alkaline battery
- Battery life - Approx. 100 hrs
- Operating Temperature Range - 0 to +50 deg C
- Operating Pressure - Ambient +/- 10%
- Enclosure - ABS
- Weight - 230 grams
- Dimensions - H x W x D: 175 x 85 x 30 mm
- Standard Accessories - Carrying Case & Screw driver
- Intrinsic Safety (By CMRI Dhanbad) - EEx ia IIB T4
- Performance Test - Central Science Laboratory, York, U. K.
Display & Indicator Specifications
Electrical Specifications
Physical Specifications
Certification
- High specificity to gas of concern.
- Long sensor life
- Quick response
- Continuous display of the gas concentration reading
- Built-in audible and visual alarms
- Easy to read LCD display
