Batching Plant
Batching Plant

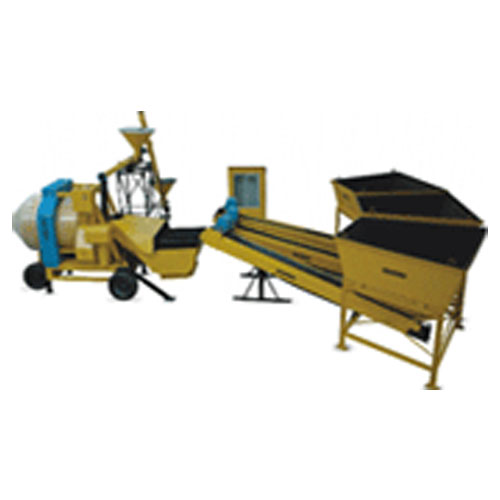

Batching Plant Comes from Cosmos Construction Machineries & Equipments Pvt. Ltd. To get the consistent quality of cement concrete all the ingredients like cement, sand, metal, water and additive chemicals are measured and mixed per batch. Electronic load cell system is attached to the skip and indication of weight to a accuracy of +1% is displayed on a digital display unit fixed on panel. In line water flow meter is fitted for measurement of water which indicates quantity of water added to the drum and with preset switch controls the fees pump. For best mixing results reverse drum mixers are used. With reversible action loading from one end, mixing & Discharge from other end becomes easy.
Product & Technology News
- Five load cell input
- Control output for 8 materials
- Automatic water dispenser
- Admix dozzing control
- Individual display for aggregate m1, m2, m3, sand, cement, water admix dozer
- Auto weight of set adjustment
- Weighing System : Electronic Load Cells with digital indication on panel board
- Water Measurement : By inline flow meter and digital display on panel. Switch provided on panel controls the pump as per measurement. Three / four bing hopper system
- Available in : 1 / 2/ 3 / 4 Bin System
- Chases : Fabricated out of M.S. Tubes at structural members. Robust in construction for long life
- Options : Fly Ash Feeding System / Concrete Conveyor to load Transit Mixer / Batch Printing Systems / Chemical Dozer / Cement Silo / Fly Ash Silo
- Double stage heavy-duty square tube design chassis
- Low maintenance high performance
- Suitable discharge height for concrete pump and tough rider
- Hydraulic cylinder for skip (Hopper)
- Automatic water dispenser to maintain the accuracy of correct cement water ratio
- Automatic weighing system to maintain correct weight every time
- 100% concrete mixing with help of reversible blade technology
- High quality & original brought out items for Hydraulic assembly and Standard ISI marked motor
- More durability less wear & tear
