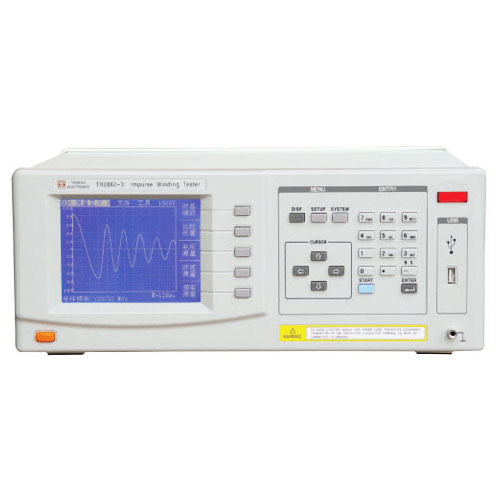

Impulse Winding Tester
Impulse Winding Tester
Impulse Winding Tester tests the electrical characteristics of coil winding without damaging the DUT. The prerequisite conditions for quality of a coil electric impulse by capacitor discharge are applied to the standard and the DUT. The voltage decay waveform is generated in response to the impulse, related to the Q-factor and inductance of the coil. If high impulse voltage is applied, the poor insulation will appear as a corona or layer discharge.
Product & Technology News
- Fast detection of winding insulation at a speed of 5.5 measurements /sec
- Four kinds of waveform comparison methods
- Up to 20MSPS sampling rate
- Multi-trigger mode programmable
- Voltage, Time and Frequency test function
- Direct display of comparison result
- Keyboard lock and password protection function
- Handler, RS-232C and GPIB (optional) interfaces
- 800 groups of waveforms can be stored in USB disk (optional)
