Worm Milling Machine

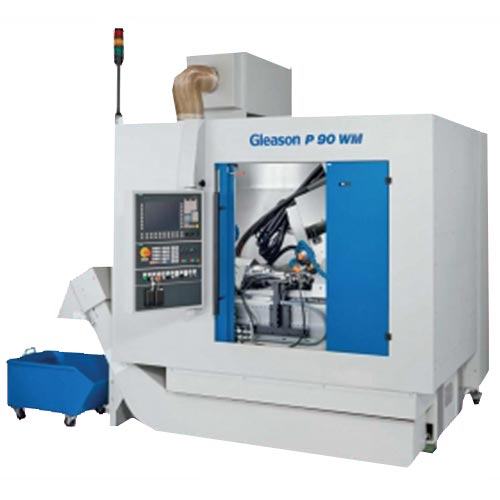

Gleason Works (India) Pvt Ltd offers a Worm Milling Machine, Model Gleason P 90 WM. A large number of industrial gearboxes utilise worm drives to achieve speed reduction. The most popular methods used to manufacture worm drives are rolling, milling and grinding. Considering all factors, the most efficient process is milling, hardening and grinding. Milling allows manufacturers to control and significantly reduce the amount of stock remaining for grinding. The Gleason P 90 WM represents a proven machine concept, which has been modified and optimised for worm milling. The redesigned milling head is compatible with tools ranging from 160-250 mm. Sufficient power and torque allow for the use of HSS milling tools as well as tungsten carbide styled tools. The swivel angle is capable of manufacturing up to 7 start worms to 8mm in module range with an accuracy to class 6 DIN. The P 90 WM machine is an ideal solution for worm milling applications. Based on the proven P 90 machine base, the P 90 WM is equipped with a 18 kW cutting spindle allowing worm milling up to module 8.
Highlights:

• Worm milling machine with increased performance and higher torque for work pieces up to module 8 mm
• Disk type cutter in HSS- and inserted carbide quality at OD 160 mm up to 250 mm
• Enlarged swivel range for the manufacture of worms up to 7 threads
• Synchronously moving tailstock with centring steady rests (optional).
