CNC Lathes, Large Flat Bed

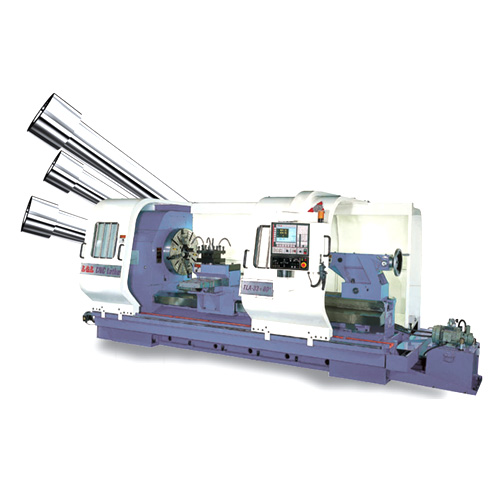

Cosmos Impex offers L & L Large Flat Bed CNC Lathes, LC/LD/LFM Series. L & L flat bed CNC lathes are the cost effective way to turn large parts. While available in standard sizes, these machines are often built to order as per user requirements. Whether it is rolls, shafts, oil field parts, or large chucking applications, L & L lathes are the machines to tackle the toughest jobs. These machines feature standard spindle bores from 4” to 12” and centre distances from 1000 mm to 10,000 mm. The machines can be configured to meet any requirement including a variety of chucks and vertical and horizontal turret configurations. Cast iron beds, hardened and ground ways, rigid spindles and high horsepower spindle motors coupled to 4-speed gearboxes provide the required power and rigidity. The L & L lathes are loaded with standard features including a chip conveyor, 8-station turret, a programmable tailstock with motorised movement in large lathes, and a 3-jaw hydraulic chuck package. The company can also provide 3-jaw manual, 4-jaw manual, or special fixtures. The lathes are equipped with the latest Fanuc controls. For turning long parts that require a steady rest, the company offers a 4-bed way option on all of standard 2-bed way lathes. The multiple bed ways allow the use of turn through steady rests that do not interfere with the carriage. Turning long shafts end to end is quick and easy – no need to stop and move a steady rest. Whatever the large turning needs, the company has the machine for specific application and budget.
