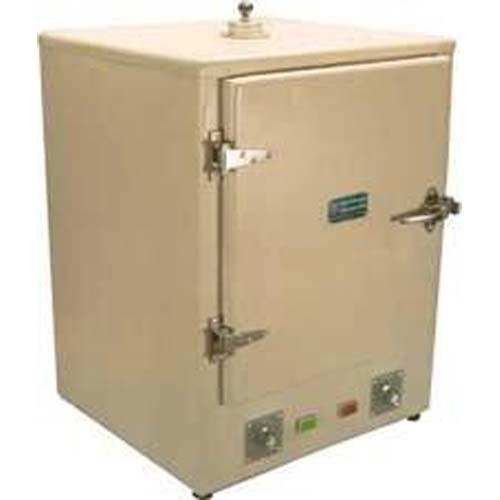

Pathak Electrical Works offers Oven, PEW-180/PEW-250.
Construction
- Cabinet: Double walled cabinet with outer wall made of mild steel, and inner chamber can be of mild steel, or stainless steel, as required
- Insulation: Glass wool filled between the walls to a minimum thickness of 2 inch
- Door: The door is fitted on heavy chrome plated brass hinges, and it contains a 'spring and roller' type latch
- Finish: Outer side is painted with enamel paint. The inner side (in case of mild steel) is painted with heat-resistive aluminium paint
Product & Technology News
- Pharmaceutical industries
- Quality control laboratories
- Hospitals
- Heating: Heating is carried out by specially designed low-rating heaters
- Control: The temperature is controlled by a specially fabricated differential expansion type thermostat. For better accuracy and safety of the oven, Digital Temperature Controller can be provided at an extra cost
- Temperature range: For PEW-180: 5ºC above the ambient temperature to 180ºC max; for PEW-250: 5ºC above the ambient temperature to 250ºC max (up to 300ºC can be provided, at an extra cost)
- Accuracy: Better than ± 2ºC below 80ºC and better than ± 1ºC above 80ºC
