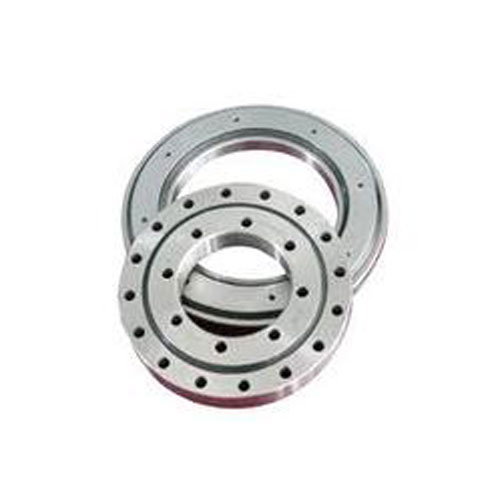

Robotic Arm Bearing

HVD Distributors Pvt Ltd, an ISO 9001: 2008 certified company, offers Robotic Arm Bearing. Bearing being the link between mobile element an alternate base must have a capacity to transmit the stresses of a mobile towards a base. It is necessary to accurately define all the actual stresses applied so that a bearing can be selected. SJS Bearings introduces the new compact precision table "SJS table series" a rotary table bearing to provide high performance circular motion in as small a package as possible. SJS bearings are currently available in sizes upto 300mm OD SJS bearings - accuracy in smaller simpler package. The precision table bearing consists of two thorough hardened or induction hardened standard bearing steel races (Rings), a special polymer spacers and complement of super precision steel balls. The specially designed raceways increase load capacity and stiffness in moment loading while guaranteeing high precision long service lifetime and very low coefficient of friction. These bearings can also be supplied with specially designed spring steal seals depending upon application. These bearings makes it possible to reduce the size of many precision rotary bearing system. The SJS compact design can replace a double back or face mounted angular contact bearing pair at a substantial savings of space and cost.
