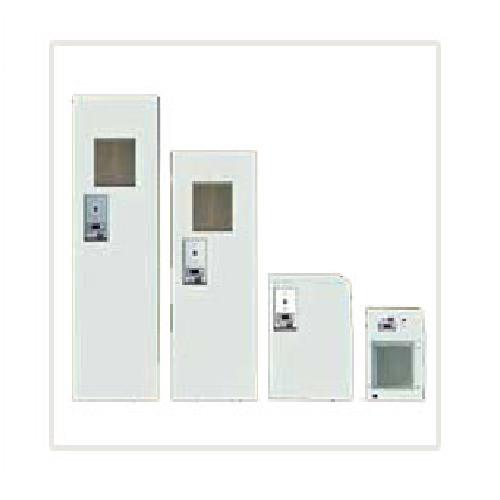

Panel Coolers

Panel Coolers


Freeze Tech Equipments offers Panel Coolers. Electronic control systems installed in CNC machines and other special purpose machines generate heat during operation. Apart from heat, moisture-laden air and dust also adversely affect electronic controls. These panel coolers maintain a clean environment required in electronic control panel cabinets using a closed loop design. This ensures locking out of excessive heat caused by high ambient temperatures, moisture and dust. The clean air within the control panel cabinet is continuously cooled by the refrigeration system and re-circulated and the operating temperature can be maintained within the cabinet; thus maintaining a cool, clean, moisture free, environment at all times.

  • CNC machines
  • Instrumentation panels
  • Mainframe computers
  • Electronic cabinets
  • Automation systems
  • Automated process industries, etc

TECHNICAL DATA FOR FREEZE TECH PANEL COOLERS
MODEL FTPCmini FTPC500 FTPC1200 FTPC1500 FTPC2700
OPERATING 230v/50Hz 230v/50Hz 230v/50Hz 230v/50Hz 230v/50Hz
VOLTAGE
RATED CURRENT 2.9AMPS 2.9AMPS 3.8AMPS 5.5AMPS 5.7AMPS
STARTING
M C B YES YES YES YES YES
DUTY CYCLE 100% 100% 100% 100% 100%
COMPRESSOR KCE419HAG KCE419HAG AE4440YGS AKR4460 AKR5512
POWER  460W 460W 670W 877W 1240W
CONSUMPTION
REFRIGERANT  R134A R134A R134A R134A R22
PERMISSABLE  24bar 24bar 24bar 24bar 24bar
PRESSURE
TEMPERATURE DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL
CONTROLLER
SIDE MOUNTING YES YES YES YES YES
MODEL
TOP MOUNTING NO YES YES YES YES
MODEL
WEIGHT IN Kgs 20 38 40.5 50 55
COOLING OUTPUT  480W 480W 1200W 1500W 2700W
COLOUR SEIMENS GREY - POWDER COATING
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION

  • Sleek modular design compatible to any control panel
  • Imported (German) make backward curve blowers
  • Easy to install and maintain
  • Powder coated cabinet
  • Proven components
  • A wide range of models
