Universal Scanner Logger
Universal Scanner Logger

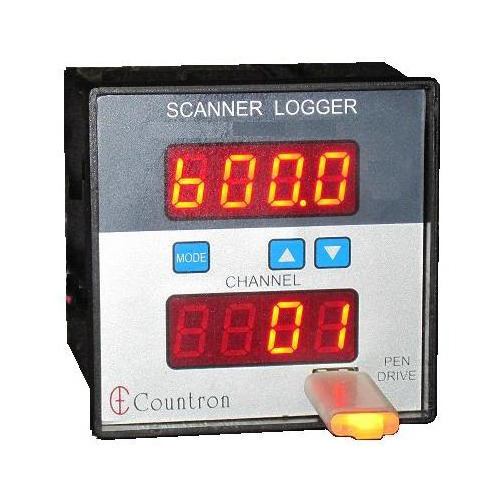

Countronics offers an 8-channel Universal Scanner Logger, Model CT708U. Features: data saved directly on USB pen drive in an MS Excel compatible file; microprocessor based linearised for J/K/R thermocouples and PT100 temperature sensors; 4-20 mA input with low, high and resolution individually settable for each channel; auto cold junction compensation for thermocouples and 3-wire input for PT100; number of usable channels selectable; auto/manual mode of scanning selectable; rate of logging settable by user in mins, secs; digital offset user settable for individual channels; internal real time clock with battery backup for saving values along with date and time; no need of any additional software for managing data; and saving data on pen drive allows a very large amount of storage space at very low cost.
Product & Technology News
- Display : 0.56†Red LED display for Channel Number. 0.56†Red LED display for Process Value
- Sensor : J/K/R Thermocouples, 3 wire PT100 and 4-20mA input user selectable
- Range : J-T/C : 0 to 750?C K-T/C : 0 to 1250?C R-T/C : 0 to 1700?C PT100: -100.0 to +600.0?C 4-20mA: -1999 to 9999 with resolution of 0.001, 0.01, 0.1 and 1
- Resolution : 1?C for thermocouples, 0.1?C for PT100 and user selectable for 4-20mA
- Channels : Maximum 8
- Scanning Rate: User settable from 1-99seconds
- Digital Offset : User settable individually for each channel
- Logging Rate : 1 second to 99Mins59seconds
- Data Logging : Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels
- Real Time Clock: Adjustable Calendar (Month/Date) and Time (Hrs:Mins)
- Accuracy : ±1?C ± 1 Least Significant Digit for Thermocouples. ±0.1?C ± 1 Least Significant Digit for PT100
- Power Supply : 230V AC ± 15% at 50/60Hz
- Front Facia : 96mm x 96mm
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors
- 4-20mA input with Low, High and resolution individually settable for each channel
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Number of usable channels selectable.
- Auto/Manual mode of scanning selectable
- Rate of logging settable by user in Mins:Secs
- Digital offset user settable for individual channels
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost
