Temperature Controller
Temperature Controller
Temperature Controllers have a front panel of 96×96 mm (width × height) and cut out of 92×92mm.

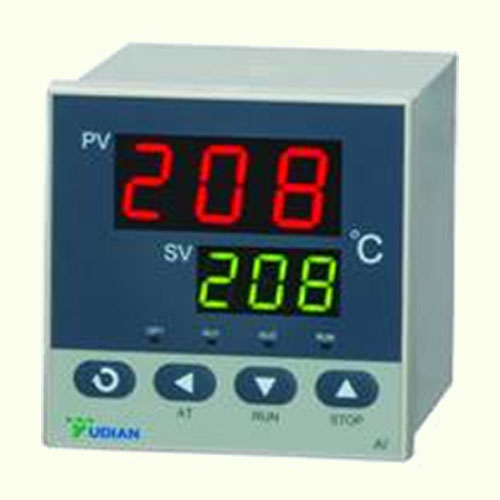

- AI-208 economical intelligent temperature controller
- AI-208G, with SSR voltage output, no alarm output
- AI-208GL1, with SSR voltage output + 1 Relay alarm output (N.O. / N.C.) OR 1 contact output, but no alarm output.
- AI-208GL5, with SSR voltage output + 1 Relay alarm output (N.O.) AND 1 contact output and alarm output.
Â
Product & Technology News
- 1. Input type:
- Thermocouple: K, E, J, N
- Resistance temperature Detector: Pt100
- 2. Instrument Input range:
- K, E, J, N (0 - 999°) Pt100 (0 - +800°)
- 3. Measurement accuracy: 0.3%FS±1
- 4. Temperature display resolution: 1
- 5. Control mode:
- On-off control mode (dead band adjustable)
- AI artificial intelligence control, including fuzzy logic PID control and advanced control algorithm with the function of parameter auto tuning.
- 6. Output mode:
- L Relay contact discrete output (NO): 250VAC/2A or 30VDC/2A
- G SSR Voltage output: 5VDC/30mA (used to drive SSR)
- 7. Alarm function: upper limit, Deviation high alarm.
- 8. Power supply voltage rating: 100-240VAC/50-60Hz.
- 9. Power consumption: ?2W.
- 10. Ambient temperature: 0 - 55
