Servo Controller

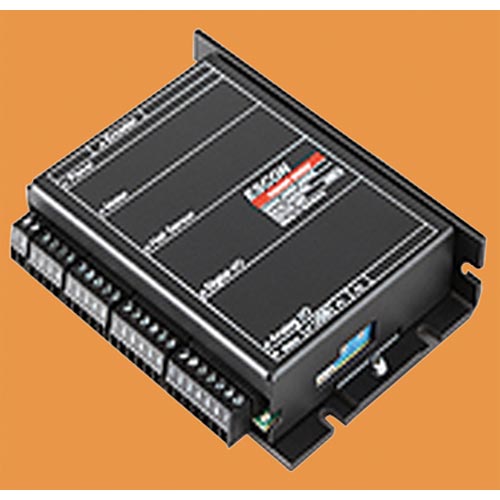

Straightforward commissioning – excellent controller characteristics – peak performance. Maxon Precision Motor India Pvt Ltd offers a new series of Servo Controller, the ESCON 50/5. As the little brother of ESCON launched previously, it captivates by user-friendliness and outstanding performance. The compact, powerful 4-quadrant PWM servo controller offers efficient control of permanent-magnet activated brushed DC motors and brushless EC motors up to approximately 250 W. As part of the ESCON family, it is the embodiment of unrivaled power density in the field of servo controller technology. More convenience, functionality, protection, or power are hardly possible. The ESCON 50/5 has excellent control properties and a very fast digital current controller with an enormous bandwidth for optimal motor current/torque control. The drift-free yet extremely dynamic speed behavior enables a speed range of 0 to 150,000 rpm. The technological masterpiece provides a wide range of functions with fully configurable digital and analog inputs and outputs and can be run in various operating modes (speed controller (closed loop), speed controller (open loop), current controller). It is perfectly matched to maxon's range of motors and thus allows dynamic drive solutions that meet the highest demands. The compact servo controller is controlled by an analog set value specified via analog voltage, external or internal potentiometer, fixed value, or by means of PWM signal with variable duty cycle. Other interesting features are, for instance, the ability to enable or disable the power stage depending on the direction of rotation, or to use speed ramps for acceleration and deceleration. The speed can be regulated by digital incremental encoder (2-channel, with/without line driver), DC tacho, or with Hall sensors.
