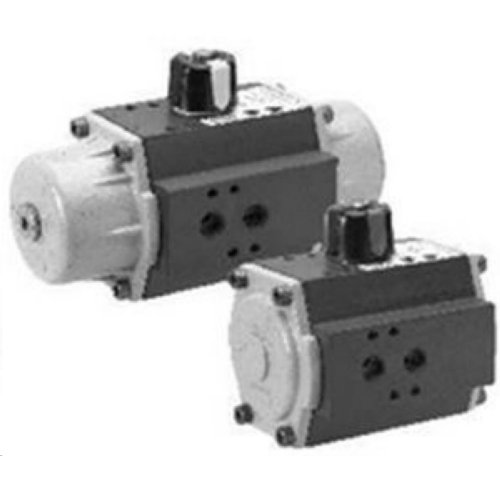

Pneumatic Rotary Actuator, ISO Mounting Type
Pneumatic Rotary Actuator, ISO Mounting Type
ICS Sales offers a wide range of ISO Mounting Type Pneumatic Rotary Actuator, Model 3400 Series.
Product & Technology News
| SERIES | 3400 |
| TYPE | Pneumatic Rotary Actuators for 90° Turn Valves Direct Mount Type. With End pinion & Namur mounting: spring return/ double acting |
| BODIES | Extruded Aluminium, Hard anodized. ISO 5211 |
| ENDÂ COVER | Aluminum Pressure Die Casted / Engineering Plastic |
| ANGLE OF ROTATION | 90°± 1.5° |
| OPERATION PRESSURE / ELECTRIC SUPPLY | For 3400D to 8.5 bar 3400S 5.5 to 8.5 bar |
| MAX. OPERATING TEMP. | -10°C to 60°C |
| ACCESSORIES | 1,2B,3B,4C,6,7,8,9A,9B for Torque range refer to AVCON. |
