• Globetek

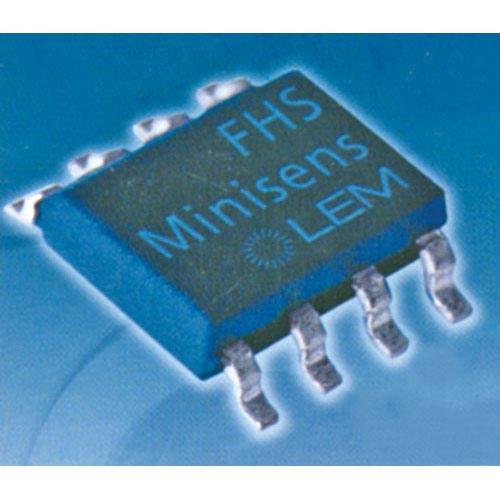

Current Transformer, Minisense

Globetek is manufacturers’ representatives and distributor on exclusive basis for many European and American companies in India, specialised in power electronics components, test and measuring and quality control instruments. The Minisense is taking miniaturisation to the next level as it is a full-fledged Current Transducer for isolated current measurement including magnetic concentrators in an IC SO8 size. This allows users to include all the functionalities they are looking for into the space that is available. Non contact current measurement with no insertion loss, isolation provider, and flexible design allows a wide range of current measurement from 2-70 RMS, +5 V power supply, DC to 100 kHz frequency band width, access to voltage reference, ratio metric or fixed gain and offset, standby mode pin, dedicated additional fast output for short circuit detection, high performance gain and offset thermal drifts, and above all, an attractive price.
