Surface Mount Resistor

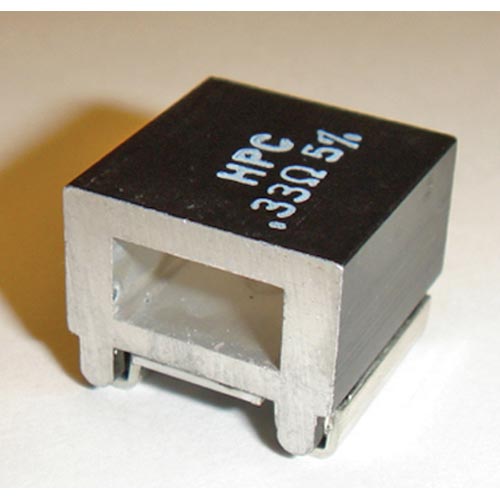

Stackpole high-power Surface Mount Resistor, Model HPC12 offers up to 12.5 W continuous power with no heat sink or air movement required. Measuring 0.5” square by 0.4” high, HPC12 can handle 5 W continuous power with no additional heat sink or air movement required. The HPC incorporates an anodized aluminium housing which allows it to handle significantly more power than other resistors of similar size without causing significant heat rise on the PCB. If the application has 400 lfm air movement, the HPC12 can handle 12.5 W. The HPC12 is a popular choice for a wide range of power supplies and electric motor controls, as well as robotics, medical devices, test equipment, welding equipment, plasma cutters, network diagnostic equipment, and industrial automation. The HPC12 is available in tape and reel and bulk packaging. Stackpole Electronics Inc., is a leading global manufacturer of resistors supplying to the world’s largest OEMs, contract manufacturers and distributors.
