• Nutan Electronics Corporation

Portable Stroboscopes

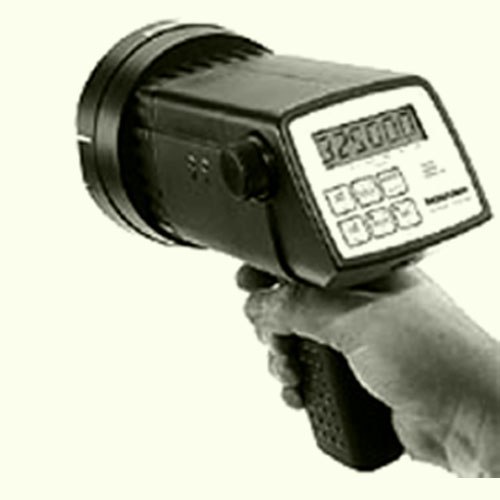

Phaser-Strobe portable stroboscope incorporates unique design features of the Nova-Strobe DB Plus family with an increased operating range of 30 to 32,500 flashes per minute, as well as external phase shifting. The unique digital adjustment knob can select the decade for adjustments, so coarse and fine adjustments of flash rates are made quickly and with significantly better resolution than competitive units. It has measuring range flashes 30-32,500 FPM, accuracy is ±0.01% of reading. Its flash rate resolution is ±FPM form 30 to 2,999 FPM and flash rate (external triggering) is 5-32,500. The average power consumption is 10 W. This portable stroboscope has internal rechargeable batteries or AC power supply and weighs approx 1.2 kg. Applications: calibration of tachometers, engine R&D and textile mills.
