Analog to Digital Storage Oscilloscopes
Analog to Digital Storage Oscilloscopes

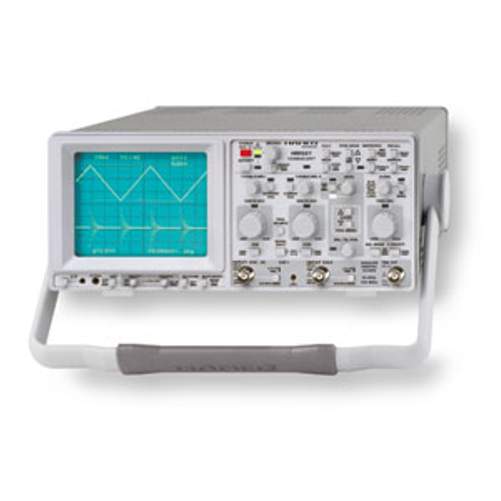

HM 507 50 MHz Combiscope is an Analog to Digital Storage Oscilloscopes at the push of a button. In industrial, maintenance and laboratory experiments can live be analysed on analog, stored in digital and transferred to PC for waveform processing at one go. Some of the other models are HM1508-2 150 MHz, HM1008-2 100 MHz, and HM2008 200 MHz.
Analog
- 2 x DC to 50 MHz, 2 x 1 mV-50V/div
- Time base 0.5 s/div to 10 ns/div
- Time base with delay and 2ndTrig
- Triggering DC to 100 MHz, TV Sync. Separator
- 1 kHz/1 MHz Calibrator, CRT with 2 kV
Digital
- Refresh, single, roll, envelope, average, XY-mode, and random
- Maximum sampling rate 100 MS/s, Storage 2x2048x8 bit
- Time base A: 100s - 0.1 ms/div., 3 reference memories
- Pre-/Post-Trigger: -75%......+100% (continuously)
- Screen Refresh 180 Hz
- Dot Join (linear)
- Math Operations
- Auto measurements
- Cursor measurements
