Surge Eliminator & Power Conditioner

Surge Eliminator & Power Conditioner

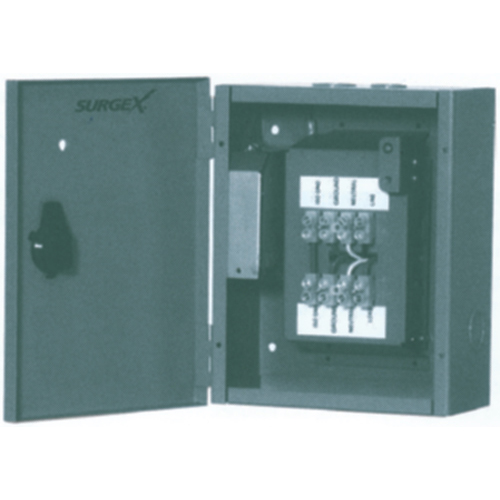

R & S (India) Electronics offers a Surge Eliminator and Power Conditioner, Model SXN1240. This provides guaranteed surge protection for dedicated power lines. The unit comes in a 12” x 12” x 4” NEMA enclosure and meets code for use in ceiling plenums. The SXN1240 is 20 A load capable and is specifically designed for international use in 240 V systems with single-phase power requirements. The standard model has one surge suppression module. The unit features both common mode and normal mode impedance tolerant EMI/RFI filtering for a comprehensive power conditioning solution. SurgeX advanced series mode technology is superior to conventional MOV circuitry or MOV-hybrid designs and is completely non-sacrificial. The zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 V (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances. SXN1240 meets Federal Grade A, Class 1, Mode 1 guidelines for powerline surge suppressors and withstands at least 1000 occurrences of surge pulse voltages up to 6000 V.

  • Unit is housed in a magnetic shielding NEMA steel enclosure
  • Operates on 240 V AC and has a barrier strip accessible through knock-outs in the enclosure for hardwiring power input and output connections
  • Overall dimensions – 10.0” x 8.0” x 4.0”; and weight – 10 lbs (approx)

Magnetic shielding steel enclosure, advanced series mode surge protection, advanced impedance tolerant EMI/RFI filtering, self-test circuit with visual indicator, 10 year warranty, and made in USA.
