EnOcean Master Terminal
EnOcean Master Terminal

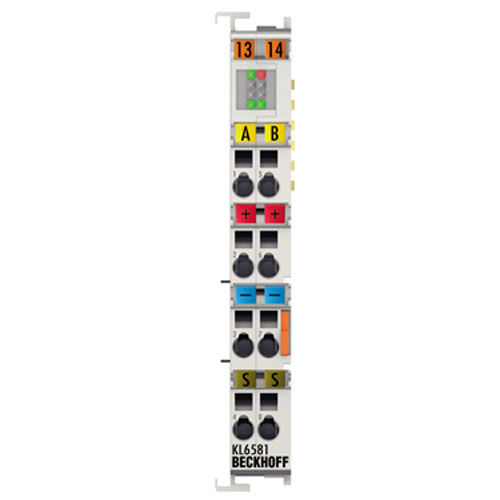

EnOcean Master Terminal, KL6581 is the link between the KL6583 transmitter and receiver modules and the application and up to eight KL6583 transmitters and receivers can be connected to a KL6581. The bidirectional EnOcean technology receives signals from battery-less sensors or transmits data to actuators. With a radio signal range of 30 m, the wiring of buildings can be simplified significantly. The KL6583 modules are connected to the KL6581 via two wires for the power supply and two wires for the data bus that transmits the telegrams. The maximum total length of the data bus is 500 m.
Product & Technology News
- Power supply: K-bus
- Connecting cable: up to 500 m
- Current consumption K-bus: 60 mA
- Configuration: not required
- Weight: approx. 55 g
- Operating/storage temperature: 0…+55°C/-25…+85°C
- Relative humidity: 95 %, no condensation
