Tensile tester - Digital

Tensile tester - Digital

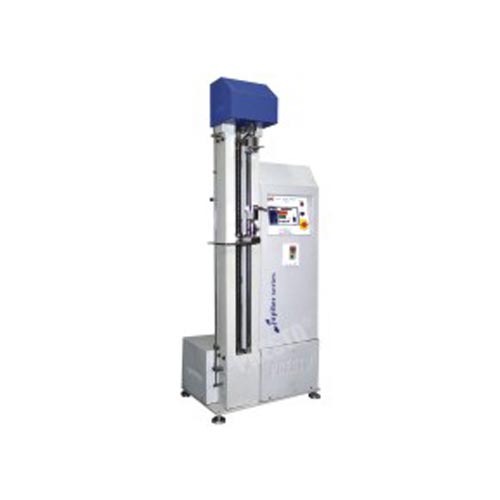

Presto Stantest Private Limited offers Tensile tester - Digital. It is based on the Constant Rate of Traverse (CRT) principle. The sample is held between two jaws; the upper one is a stationary jaw while the other end is made to move at a known fixed speed with the help of Motor, Gear Box and Lead Screw arrangement (100mm or 300mm per minute). The load exerted on the Stationary jaw is sensed by a sensor connected with load cell which directly indicates the load in Digital form in kg. The company also offers Salt Spray Chamber, Scratch Hardness Tester, Erichsen Cupping Test Machine, Bursting Strength Tester, Ozone Chamber, etc.

  • Capacity: 250 kgf
  • Least Count: 100gm
  • Motor: ¼ HP Single Phase 220-240 V AC Supply
  • Power Consumption: 1KW
  • Related Standards: BS 1610, BSES 1002-3, ASTM E-4, DIN 5122/1
