Thermometer, Portable

Thermometer, Portable

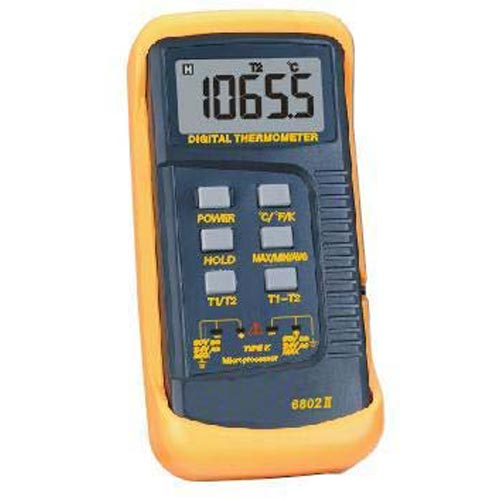

Autotec offers a portable, 5-digit, compact sized digital Thermometer designed to use external K type thermocouple as temperature sensor. Temperature indication follows National Bureau of Standards and IEC 584 temperature/voltage tables for K-type thermocouple. Two ‘K’ type thermocouples are supplied with the thermometer. It has dual channel input, shows temperature from two sensors and also displays the difference in both the temperature. The reading rate of this thermometer is 2.5 times per second and accepts any standard miniature thermocouple connectors, it really is a simple yet very effective way to monitor temperature. Especially when snaking a flexible wire into the roast chamber is easier than drilling holes for a rigid thermometer shaft. The temperature range on this thing is amazing: -50°C to 1300°C (-58°F to 2372°F)! It offers fast response and impeccable accurate results. The company’s other products are: loop powered indicators; infra-red thermometers; universal indicators and controllers, scanners, calibrators, universal isolator, signal isolators, temperature transmitters, CCTV camera systems, pressure transmitters, power supply, temperature sensors, low/zero speed switch, customised panels, large display and bar graph indicators, AC/DC drives and junction boxes. The company also offers Digital Scanners, 8-32 Channels, Loop Power Indicator, etc.

  • Display – 5-digit liquid crystal display (LCD) showed maximum 5 digital number
  • Power current – approx DC 2.8 mA (typical)
  • Sensor probe – 4-foot type "K" thermocouple bead probe (Teflon tape insulated)
  • Temperature scale – °C or °F, user-selectable
  • Measurement range – -50.0 to 1300.0°C or -58.0 to 2372.0°F
  • Resolution – 0.1°C or 0.1°F
  • Sensor accuracy – 0.1%
  • Functions - Max/Min/Avg/Hold
  • Input protection – 60 V DC or 24 V AC maximum input voltage on any combination input pins
  • Reading rate – 2.5 times per second
  • Input connector – accept standard miniature thermocouple connectors
  • Dimensions – 149 (H) x 71 (W) x 41 mm (D)
  • Weight – approx. 250 gm (including battery)
  • Supply – standard 9 V DC battery (NEDA 1604, IEC 6F22)
