Thermal Imager
Thermal Imager

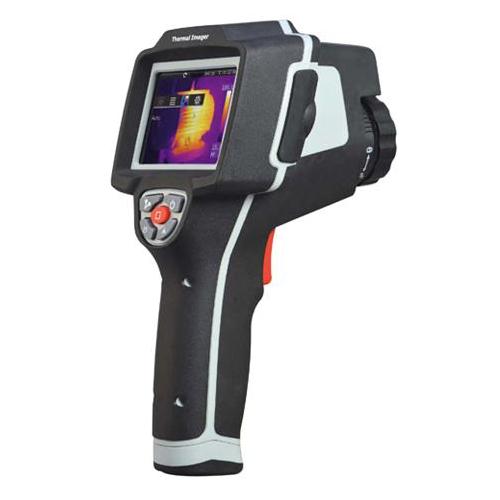

DT-9875 Thermal Imager is designed to make your work easier, more productive and effective. 160 × 120 resolution at 50 Hz for real-time capture; a big, bright touch screen with toolbar helps to fine-tune and analyse images quickly.
- Temperature range from -20°C to 400°C (-4°F to 752°F)
- 20X continuous zoom
- Picture-in-picture
- Voice comment recording
- Text annotation on images
Product & Technology News
- Plant/General Maintenance
- HVAC/R
- Transportation/Automotive
- Cooling and Reheating
- Serving areas
- Food service Equipment
- Cold storage
|
Imaging and Optical Data | |
| Field of View (FOV) / Minimum Focus Distance | 33° x 24"/ 0.3m |
| Spatial Resolution (IFOV) | 3.33mrad |
| Thennal Sensitivity/NETD | <0.08°C @ +300°C ( +86°F)/80mK |
| Image Frequency | 50Hz |
| Focus Mode | Manual |
| Zoom | 1-20x continuous, digital zoom |
| Rotate | 00-360°, continuous increased by 1° |
| Focal Length | 7.5mm |
| Focal Plane Array (FPA) I Spectral Range | Uncooled microbolometer/8-14 µm |
| IR Resolution | 160 x 120 pixels |
|
Image Presentation | |
| Display | Capacitive Touch screen, 3.5 in. LCD, 320 x 240 pixels |
| Image Modes | IR image visual image. picture in picture lmaae Fusion |
| Picture in Picture | IR area on visual image or visual image area on IR |
| Color Palettes | GRAY/GRAYINV IRON/IRONINV/RAINBOW/FEATHER |
|
Measurement | |
| Object Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| 0°C to 400°C (32°F to 752°F) | |
| Accuracy | ±2°C (±3.6°F) or ± 2% of reading |
|
Measurement Analysis | |
| Spot | 3 |
| Line | 2 lines(horizontal and verticaO |
| Area | 3 boxes with max. /min. /average |
| Automatic Hot/Cold Detection | Auto hot or cold markers |
| Isotherm | Detect higMow temperature/interval |
| Emissivity Correction | Variable from 0.01 to 1.0 |
| Measurement Corrections | Emissivity, ambient temperature, distance, relative |
| humidity, offset temperature | |
|
Storage of Videos | |
| Storage Media | 4Gbytes Micro SD card |
| Video Storage Format | Standard MPEG-4, 640x480@30fps, on memory card >60 minutes |
| Video Storage Mode | IR/Visual images; simultaneous storage of IR and visual images |
|
Storage of Images | |
| Image Storage Fonnat | Standard JPEG, including measurement dala, on memory card > 1 000 pictures |
| Image Storage Mode | IR/Visual images; simultaneous storage of IR and visual images |
|
Set-Up | |
| Laser | <Class2 |
| Set-Up Commands | Local adaptation of units, language, date and time formats, information of camera |
| Languages | Multinational |
|
Digital Camera | |
| Built-in Digital Camera | 640 x 480 pixels |
| Built-in Digital Lens Data | FOV62.3° |
|
Data Communication Interfaces | |
| Interfaces | USB-mini, audio, composite video, Micro SD slot |
| USB | Data transform between camera and PC |
| Video Out | Composite(PAL and NTSC) |
|
Power System | |
| Battery | Lithium polymer battery, 4.5 hours operating time |
| Input Voltage | DC 9Vto 12V |
| Charging System | In camera (AC adapter) |
| Power Management | Automatic shutdown and sleep mode (user selectable) |
|
Environmental Data | |
| Operating Temperature Range | -20°C to 500°C ( -4°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C ( -40°F to 158°F) |
| Humidity (Operating and Storage) | 10%-90% |
| Encapsulation | IP65 |
| Drop Test | 2m |
| Bump | 25g (IEC60068-2-29) |
| Vibration | 2g (IEC60068-2-6) |
|
Physical Data | |
| Camera Weight, incl. Battery | 920g |
| Camera Size (L x W x H) | 243 X 103 X 160 |
- High Resolution IR Image - 19.200 pixels (160x120) Infrared resolution
- Visible Light Digital Camera - 640x480 resolution with flash provides sharp images regardless of lighting conditions
- Picture in Picture - Displays thermal image super-imposed over a digital image
- LED Flashlight - Allows the visual camera and fusion to be used in poorly lit environments
- Hide Temperature Range - From -20°C to +400°C targeting electrical and industrial applications
- ±2% Accuracy - Reliable temperature measurement
- Thumbnail View - Easy to view and analyze images quickly
- The Image rotation - The ability to automatically rotate the active image
- Audio recorded with the video image - A speaker to listen to audio recorded with the video image
- Capacitive Touch Screen - More easy, productive and effective to operate it
- Lithium polymer Rechargable Battery - Lasts >4hrs continuous use; replaceable
- Copy to USB - Easy uploads images from camera to USB memory card
- Area (Min/Max) Mode - Shows the Minimum or the Maximum Temperature reading in the selected area
