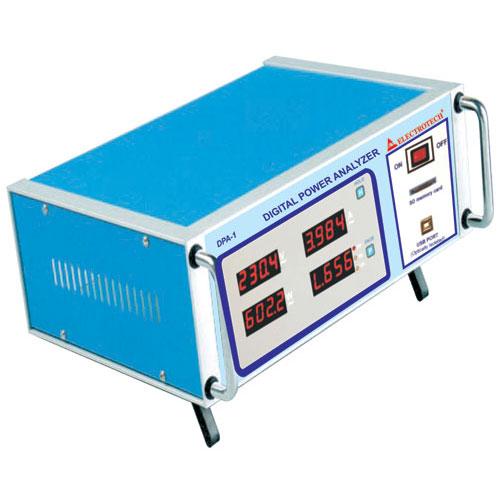

Power Analyser, Single Phase

Naman Enterprises offers a single phase digital Power Analyser, DPA-1, designed and developed indigenously by the company to make testing simpler, faster, accurate and reliable with its high performing DSP based circuitry and user-friendly operational features. It serves various industries in electrical machines (like transformers, motors, stabilisers), power electronics (like UPS systems, inverters, rectifiers) and lighting devices (CFLs, ballasts, LEDs). This instrument is certified by ETDC, NABL accredited lab. The high speed simultaneous sampling using 24-bit ADC ensures true RMS measurement for the wide range of input voltage and current. This instrument displays voltage, current, frequency, active power, power factor and apparent power simultaneously in a 7-segment display. The measurement is valid at all power factors and gives accurate results even in the presence of harmonics in the system. The meter is provided with hold facility. The functionality of the meter is further enhanced with PC interfacing facility through USB port. The accompanying software is capable of data logging and viewing the meter variables in real time on computer using the GUI provided. This meter is provided with SD memory card facility to save up to 10000 test results with serial numbers and data can be retrieved later by inserting this card into the PC or laptop.
