LCD Meters

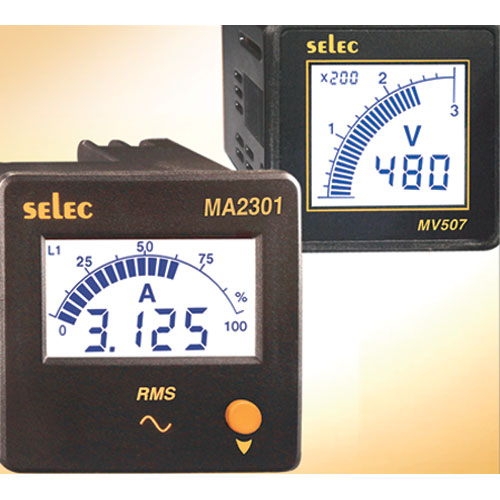

Selec Controls Pvt Ltd, an ISO 9001: 2008 company, is launching a new range of uniquely designed Ammeters and Voltmeters, displaying an analog style bargraph as well as a digital display. The meters have backlit LCD display with high visibility from a distance. The feature of bargraph gives the advantage of long distance analog viewing whereas measurement accuracy is provided by the digital part. Single phase models come in bezel sizes of 48 x 48 mm and 72 x 72 mm, whereas three phase models are in bezel size of 72 x 72 mm. In three phase models, there is a selector switch to select viewing of the phases, one at a time. CT primary is programmable in the ammeters up to 5000 A. Three phase voltmeter is selectable for monitoring phase-neutral or phase-phase voltages. Phase-phase measurements are up to 516 V whereas phase-neutral up to 300 V. All measurements are true RMS. The depth of meters is short, being 50 mm in 72 x 72 mm and 68.5 mm in 48 x 48 mm sizes respectively.
