Process Indicator
Process Indicator

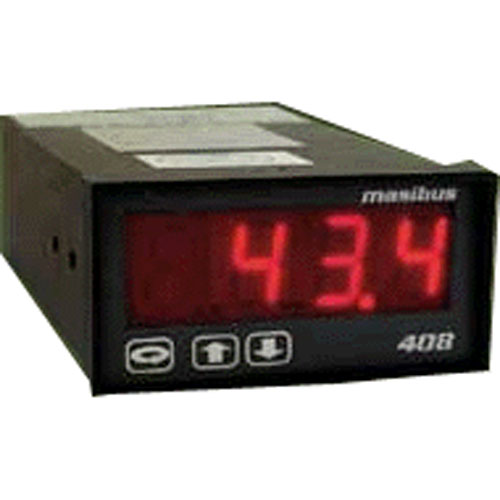

Digital Promoters offers Process Indicator, Model 408. This microcontroller based type indicator is available with full 4-digit display.
Product & Technology News
- Easily programmable for input type and range through front keypad
- Housing for protection in corrosive and hazardous atmosphere
- Display: 0.8â€, 4 digit
- Input: Universal (Subject to re-calibration), Linear Input: o 4-20mA, 0-20mA and Non-Linear Input: RTD Pt-100, 3 wire: K, J, T, R, S t/c
- Power Supply: 230 VAC or 110 VAC (24V DC as Optional) and 50Hz (Factory Set)
- Ambient: 0 to 55°C
- Humidity: Up to 95% RH
- Case: MS powder coated
- Environmental: IP54 front, IP20 enclosure
- Bezel: 96 (W) x 48(H) x 175(D)mm
- Panel Cutout: 92mm x 45mm
- Transmitter Power: 24 VDC@ 30mA
- Housing (Optional): IP 65 / Ex-proof
- Bright red LED display 0.5", 0.8"
- Accepts Linear & Non-Linear inputs
- Highly accurate and stable display
- Easily programmable for input type and range through front keypad
- Full Hardware calibration
- Housing for protection in corrosive and hazardous atmosphere
- Transmitter power supply available
