Digital Indicator
Digital Indicator

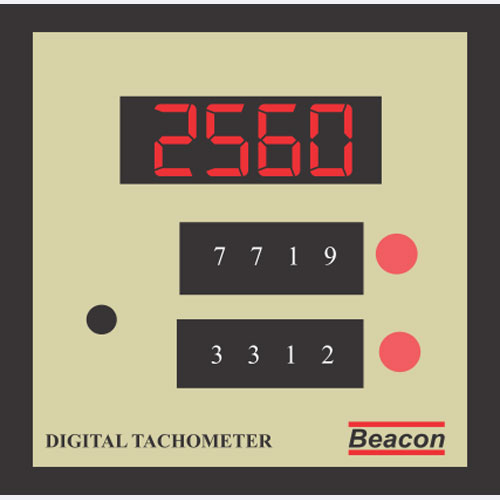

Beacon Industrial Electronics Pvt. Ltd. offers Digital Indicator, LM - 96C. Model LM-96c Digital Tachometer is compact version of standard LMP - 1004C Tachometer with two set points. Speed setting is done by menas of digit thumb wheel switches provided in the front panel of the instrument. The Indicator is housed in standard 96mm x 96mm box with depth of 200mm require panel cut of 92mm x 92mm. The Insturment can be set for high as well as low value of four digits. Each set value relay provides one change over potential free contact for external use.
- High / Low Alarm
- Over Speed Tripping
- Low Speed Detector
- Speed Control
- Display: 4-digit 14.5mm RED LED
- Input Range: 0 to 10000Hz
- Input Volts: 100 mV to 5 VAC
- Relay Contact: 5 A at 230 VAC
- Supply : 230 VAC or 110 VAC
- Ambient Temp. : 0-60 degree C
