Documenting Process Calibrators
Documenting Process Calibrators

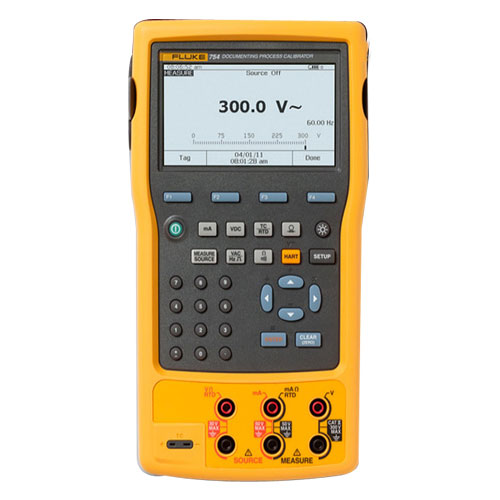

Fluke offers Documenting Process Calibrators, Fluke 754. Fluke 754 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. This 754 is a power multifunction documenting calibrator that lets to download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis. The 754 also features a powerful built in HART® interface capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.
Product & Technology News
- Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments.
- Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters.
- Power transmitters during test using loop supply with simultaneous mA measurement.
- Measure/source pressure using any of 29 Fluke 700Pxx pressure modules.
- Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results.
- Holds up to a full week of downloaded procedures and calibration results.
- Use many features like auto step, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
- Easy to use.
- Three year warranty.
- Bright white dual display. Read both sourced and measured parameters simultaneously.
- Multi lingual interface.
- Rechargeable Li-Ion battery for 10 hour uninterrupted use. Includes gas gauge.
- Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.
- Delivered with DPC/Track Sample software.
- Compatible with many asset management software packages.
