Fusion Machines
Fusion Machines

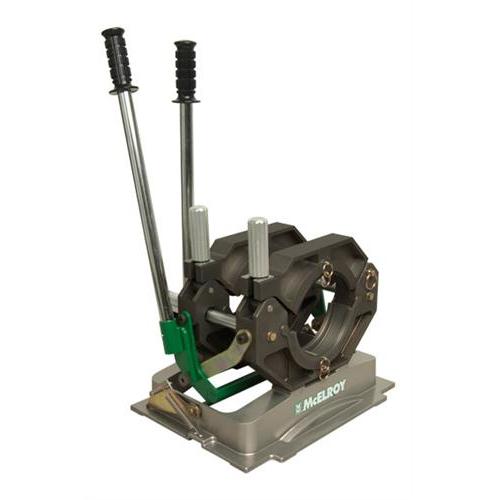

McElroy’s line of Pit Bull® Fusion Machines are compact, lightweight and rugged. The Pit Bull 26 fuses polypropylene pipe sizes from 63mm to 160mm. Setting the standard for manually operated butt fusion machines, the Pit Bull 26 incorporates McElroy’s patented centerline guidance system, as well as a semi-automatic locking cam that maintains carriage position during the cooling cycle.
- Patented Centerline Guidance System for equal distribution of force around the joint
- Semi-automatic locking cam system maintains force during cooling
- Hard anodized aluminum wear surfaces for corrosion resistance
- Serrated jaws and inserts keep pipe from slipping during fusion
- Reversible jaws, clamp knobs, levers, and facer allow operator to fuse from either side of the machine
- Thrust-bearing-equipped clamp knobs to minimize torque required to clamp and round pipe
- Electric facer for fast, efficient facing
- Microprocessor-controlled heater temperature
- ISO-compliant industrial Teflon-coated heater plates
- 17-to-1 mechanical advantage
