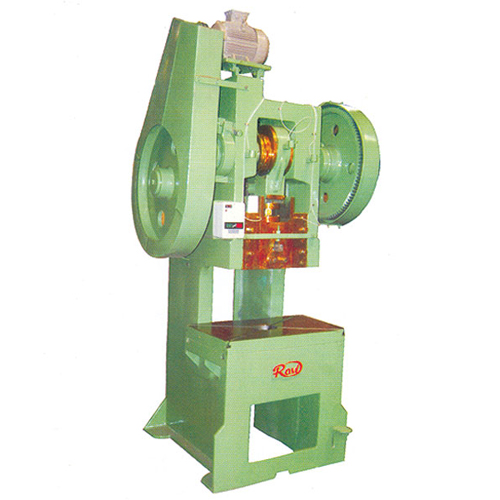

C-Type Press
C-Type Press
Ravi Industrial Corporation, a pioneer in manufacturing various types of presses, offers a C-type Press. The company was established in 1970 for manufacturing of power presses based at Ludhiana, known as industrial Manchester of India. It has complete manufacturing facilities for power presses in different models. The machines are widely used in the industry for more than three decades
- Capacity– 5 tonnes
- Bed size– 220 x 330 mm
- Bed to ram bottom– 220 mm
- Stroke length– 40 mm
- Crank shaft diameter out of– 70 mm
- Gear diameter– 356 mm
- Fly wheel diameter– 480 mm
- Hole in ram for die clamping– 25.4 mm
- Floor to top of bed– 760 mm
- Number strokes per minute– 70
- Overall height without motor– 1320 mm
- Approx floor area required- 533 x 685 mm
- Power required– 1 HP (motor speed of 1440 RPM)
