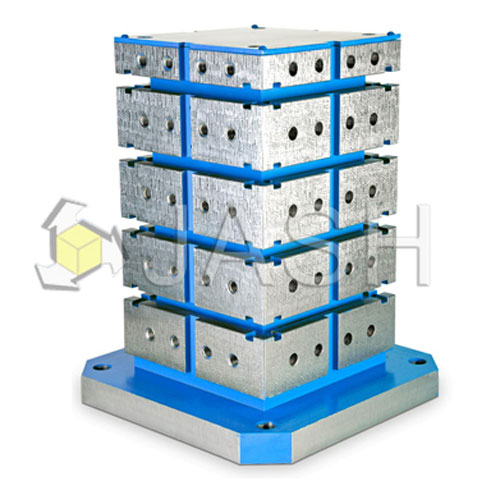

Tooling Block(Direct Mounting)

JASH offers Direct Mounting Tooling Block which is used for vertical clamping of components on horizontal boring machines, milling machines, horizontal jig mills etc. These Tooling Blocks simultaneously provide multiple faces to hold components accurately in vertical plane for machining on horizontal machining centres. Upon indexing of table a new face with new components is obtained for machining resulting into significant reduction of downtime by elimination of multiple set ups. It also enables simultaneous loading and unloading of multiple fixture plates thereby reducing total set up time. It is made from plain close grained gray cast iron conforming to Grade FG: 220 of IS: 210(equivalent to GG25/F T25/35-A). Optional Accessories includes: M16 tapped holes/helical inserts, vertical tenon slots/edge locator tapped holes/coolant drain holes, Bottom base with counter bored holes for fixing/clamping, Milled Tooling Blocks etc.
