CNC Turning Centre
CNC Turning Centre

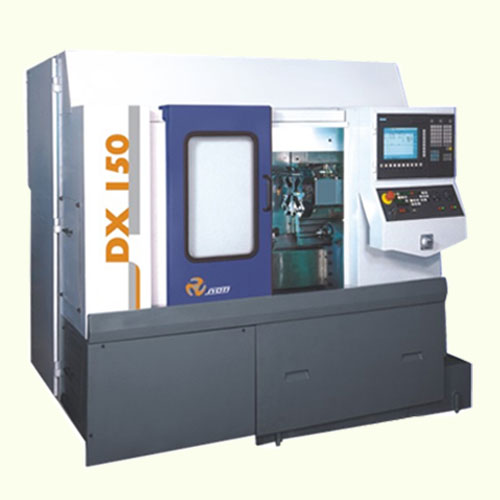

Jyoti CNC brings a very unique neophilic design concept of CNC Turning Centre machine with a cutting edge technology opening up a new era for the dry machining technology. An exceptional combination of design and manufacturing helping direct vertical fall of chips and coolant with gravity, thanks to 90° turret, that enhances better life of guide ways and ball screws compared to other design concepts. Vertical rigid mono block structure is made of graded cast iron providing stability and least distortion enabling heavy cuts and faster production.
Product & Technology News
- Swing Over Bed: 300 mm
- Maximum Turning Length: 300 mm
- Standard Turning Dia: 150 mm
- Maximum Turning Dia.: 250 mm
- X Axis Travel: 150 mm
- Rapid Feed (X & Z axis): 24 M/min
- Spindle Motor Power (Continuous rating/30 min. rating): 5.5 kw/ 7 kw
- Spindle Bore: 40 mm
- Spindle Nose: A25 max
- Maximum Bar Capacity: 38 mm
- Speed Range: 50-5000 rpm
- Strategically designed structure for vertical fall of chips enhancing overall life of machine.
- The newly designed Easy-to-Operate operator panel of the machine is made considering operator friendliness and TPM concept with simple job loading and unloading facilities.
- High Speed Servo Turret for faster indexing and better mechanical life.
- Compact Footprint with better ergonomics.
- 3-point Levelling System for faster installation, better feasibility for relocation enabling to deliver better accuracy life.
- Easy maintenance with dynamic performance with better chip disposable and coolant system.
- All manufactured components produced using the best machinery and equipments with stringent quality awareness at every stage.
CNC Turning Centre
DX 150 CNC Turning Centre
