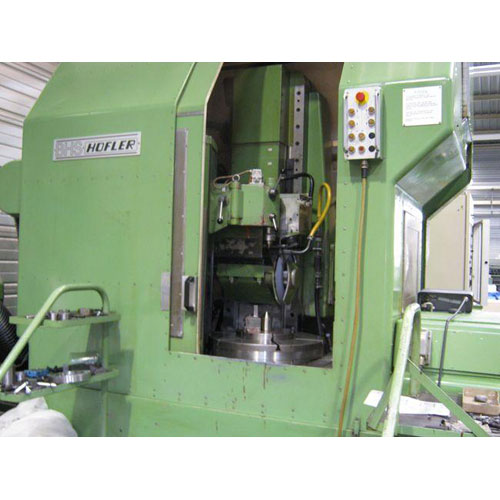

Gear Grinder 1000MM
Gear Grinder 1000MM
A-1 Machine Tools offers Gear Machines. All products are purchased directly from their origin places to provide excellence in both quality and price. The company also undertakes reconditions and installs machines and machine tools. Also undertaken are job work for fabrication, heavy machining, and CNC retrofitment.
Product & Technology News
- Max Grinding Diameter (A) 1000mm (39.37")
- Max Spur Grinding Length (B) 550mm (21.653")
- Max Left Helix Grinding Length (C) 485mm (19.094")
- Max Right Helix Grinding Length (D) 479.5mm (18.878")
- Min Height Above Table for Spur Grinding (E) 475mm (18.701")
- Min Height Above Table for Left Helix Grinding (F) 435mm (17.126")
- Min Height Above Table for Right Helix Grinding (G) 563mm (22.165")
- Table Diameter (H) 740mm (29.134")
- Table Bore Diameter 200mm (7.874")
- Min Grinding Diameter 49.78mm (1.96")
- Max Table Load 3900kg
- Helix Angle Spur-35"
- Number of Teeth 12-375
- Max tooth size 1 DP
- Min tooth size 12.75 DP
- Grinding wheel dia 400mm (15.75")Max - 300mm (11.81") Min
