Cylindrical Grinding Machine
Cylindrical Grinding Machine

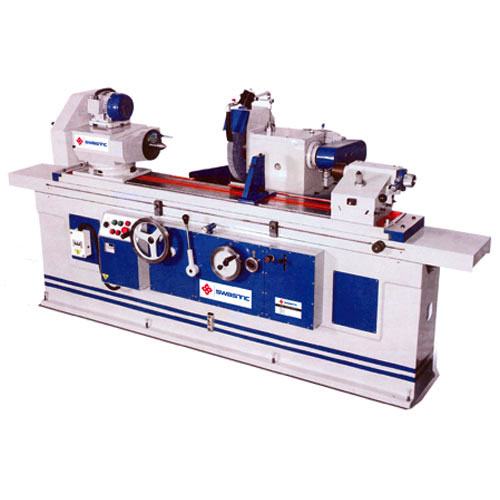

Shree Butbhavani Mechanic Works offers a Cylindrical Grinding Machine, Model BMW-600. The company has been promoted by an entrepreneur with 50 years of experience, including machine tools and textile spindle manufacturing. The BMW range of machines has been developed after thorough research work, the designs and features incorporate after thorough understanding of the customers' requirements. The range comprises cylindrical grinding machines, internal grinding machines, SPM grinding machines, internal spindles, etc. Besides standard products, the company also offers customised products as per the needs and specifications of clients.
Product & Technology News
- Centre height – 125/150 mm
- Admit between centre – 600 mm
- Max swing over bed – 250
- Max admissible length – 625
- Wheel head – speed of grinding wheel – 1600/2060 RPM
- Size of grinding wheel – 350 x 40 x 127 mm
- Max travel of wheel head – 100 mm
- Rapid approach – 40 mm
- In-feed per division on – 1 division = 0.01 mm
- Wheel head swivel – 45º in both directions
- Work head – spindle speed – 65, 140, 205, 300 RPM
- Spindle Morse taper – MT4
- Work head swivel – 45º towards and away from wheel head
- Tail stock Morse taper – MT-3
- Quill travel – 30 mm
- Table – max travel – 600 mm
- Max swivel on either side – 7’+2’ degree
- Speed of table infinitely variable – 0.05 to 1.5 m/min
- Table width – 250 mm
