Portable Gas Cutting Machines

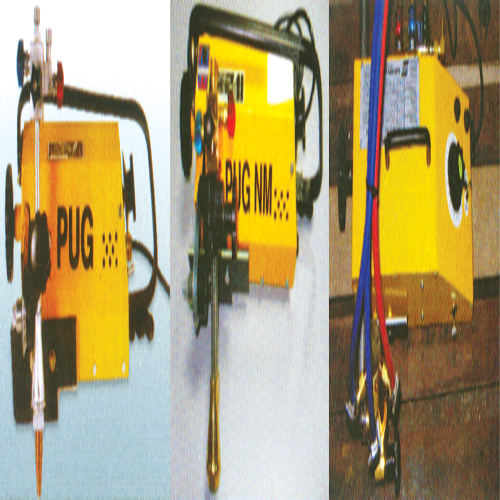

ESAB India has established itself as one of the leading suppliers of welding and cutting products in the country. ESAB products are now an integral part of industries like shipbuilding, petrochemical, construction, transport, offshore, energy and repair and maintenance. The company offers Portable Gas Cutting Machines – Pug, Pug-NM and Cheetah. Features: easy to handle – the machines are light weight and have a wrap-around handle for easy portability and protection; body – made of pressed steel with wrap-around handle, asbestos heat deflector; versatile – using extendable tracks, these machines can produce straight cuts on any length, square or bevel edge; with the same precision they will cut circles and also shapes with gradual curves when hand-guided; circle cutting – can be done with the use of circle cutting attachment, supplied as optional extra; this can be easily attached to the machine by two screws; cutter – Pug and Cheetah – injector type specially designed to prevent backfire; and Pug NM – nozzle mixing type, latest technology, much safer. Specifications: Models – Pug – Pug-NM – Cheetah; cutting capacity square cuts – up to 75 mm thick; mild steel – up to 100 mm and 150 mm thick; bevel cuts (up to 45°) – up to 50, 75 and 100 mm thick mild steel; circles – 75-1140 mm, 75-1140 mm and 150-1140 mm diameter; cutting speed – 200-800 mm/min, 190-830 mm/min and 120-400 mm/min; cutter – IMC-3 injector type – NM-type – IMC – 150 injector type (separate valve block mounting); speed control – rotary resistance – rotary resistance – solid state circuitry; gas hose connections – ¼” BSP RH and LH (for 5 mm hose) – ¼” BSP RH and LH – ¼” BSP RH and LH.
