• GF Agie Charmilles (South East Asia) Pte Limited

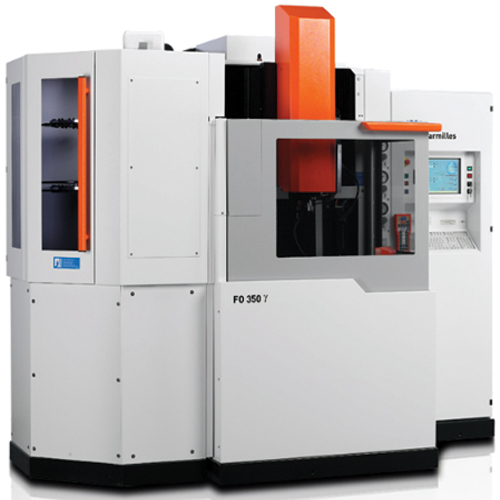

EDM Unit, Gamma TEC

Agie Charmilles (South East Asia) offers the Gamma TEC EDM unit. The FO 350 Gamma technology developed by the company enhances the performance of the EDM process by improving machining conditions. The machine dimensions are – 1900 (W) x 1890 (D) x 2550 (H) mm; total weight – 2800 kg; and X,Y,Z travel – 350 x 250 x 300 mm. Features: linear glass scales mounted on X, Y and Z axis; homogeneous quality of surfaces of all shapes including fine details; possibility of fine machining even for large surfaces; less time taken to achieve a mirror polish finish; in many cases, elimination of manual polishing, time saving as compared to hand polishing; increases the ration of surface area/obtained surface roughness for fine finishing with copper electrodes; a glossy and homogeneous surface finish of CH6 (Ra 0.2 µm) on curved areas and even on larger than 50cm² area could be obtained; significant reduction in electrode wear; an Ra 0.13-0.19µm – electrode wear 2.5 (radial) – in 4 hrs could be achieved; provides high precision and high accuracy, a highly flexible tool changer with up to 5 plates, 16, 30,32 positions per plate (a max of 160 electrodes); single or double gripper and auto scanning provision is available; PC based CNC (Fanuc 180i series), very user friendly interface; Windows XP operating system; and automatic data transfer provision – this machine enables more production with less working hours and provides satisfaction, user comfort and serenity.
