Sigma Mixers

Sigma Mixers

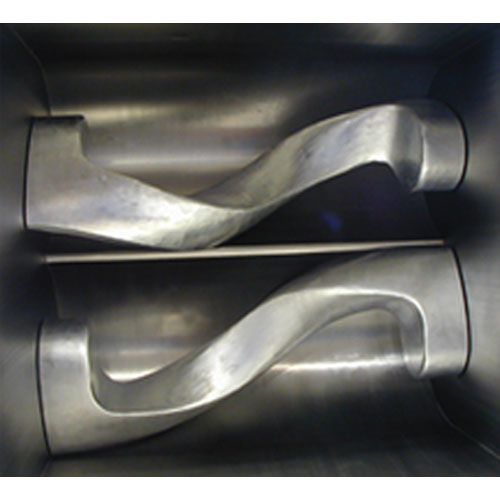

Jaya Engineering Company, an ISO 9001: 2008 company, offers Sigma Mixers. Sigma blade mixers are engineered specifically for kneading, mixing, and homogenizing wet, pasty, and highly viscous products. The mixer consists of two counter-rotating tangential rotors in specially shaped trough, curved at the bottom to form two longitudinal half cylinders with sufficient overboard volume. The blades rotate at different speeds in opposite directions causing the product to be transferred from blade to blade and from end to end, resulting in a figure eight pattern. The main trough is of fully welded construction. The rotors are taper bored and key-fitted onto stub shafts working on anti-friction bearings. They are driven by gear on both sides in heavy-duty models and pitched to achieve end-to-end longitudinal movement of the material resulting in thorough kneading action. The shaft sealing is achieved by stuffing box arrangement with Teflon impregnated gland packing.

  • Capacity: 200 ltr to 5 kL
  • Options: Materials of construction – SS, MS or MS with SS lining inside, jacketed or coiled

Established in the year 1972, Jaya Engineering Company, is engaged in manufacturing and supplying a wide array of chemical and pharmaceutical equipment. These products are widely used in various industries like chemical, pharmaceutical and processing industries due to their high performance, optimum functionality and longer functioning life. Besides, these are in sync with the international quality standards and are highly appreciated by the clients for their robustness and corrosion resistance.
