Magnetic Stirrers
Magnetic Stirrers

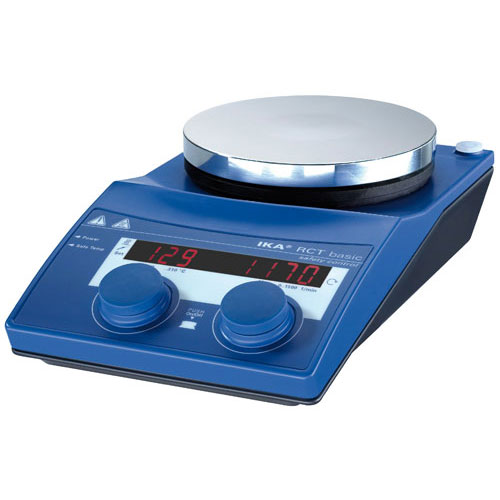

IKA India Private Limited offers Magnetic Stirrers, RCT basic with new technology for more capacity, stronger motor for a higher range of speeds. It has additional temperature control mode for faster heating of medium; integrated temperature control including PT 1000 temperature sensor (PT 1000.60); exact temperature and speed setting via digital display, even when switched off; set safety temperature limit displayed digitally; hot Top indicator - hot surface warning to prevent burns; digital error code display with adjustable safety circuit of heating plate temperature (50° C - 360 °C); safety magnetic stirrer with heating, suitable for unsupervised operation. The bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control. It has high level of safety thanks to improved heat control technology. It enclosed assembly (IP 42) guarantees long service life. The highly polished aluminium heating plate used for optimum heat transfer. It has improved magnetic adhesion including protection cover H 100.
- Number of stirring positions - 1
- Stirring quantity max. per stirring position (H2O) - 20 l
- Speed deviation of individual stirring positions - 5 %
- Stirring quantity max. (H2O) - 20 l
- Motor rating input - 16 W
- Motor rating output - 9 W
- Speed display - LED
- Speed range - 50 - 1500 rpm
- Stirring bar length max. - 80 mm
- Heat output - 600 W
- Heating rate (1 l H2O in H15) - 6.5 K/min
- Heating temperature range room temp. - (- 310 °C)
- Heat control - LED
- Heat control accuracy - 1 ±K
- Speed control - stepless
- Adjustable safety circuit min. - 50 °C
- Adjustable safety circuit max. - 360 °C
- Connection for ext. temperature sensor - PT1000
- Control accuracy with sensor - 1 ±K
- Set-up plate material - Aluminium alloy
- Set-up plate dimensions - Ø 135 mm
- Dimensions (W x H x D) - 160 x 85 x 270 mm
- Weight - 2.5 kg
- Permissible ambient temperature - 5° - 40 °C
- Permissible relative moisture - 80%
- Protection class according to DIN EN 60529 - IP 42
- Voltage - 220 - 230 / 115 / 100 V
- Frequency - 50/60 Hz
- Input - 650 W
