Nitrogen Tyre Inflation System
Nitrogen Tyre Inflation System

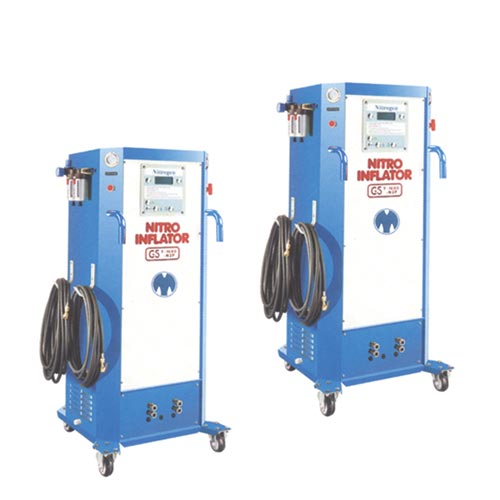

Madhus Garage Equipments Pvt Ltd offers a Nitrogen Tyre Inflation System, Model-T-1500-N2P. The company also offers Wheel Balancer, Wheel Balancer with LCD Display, Diagnosis System For Cars And Lcvs, A/C Service Equipment, Side Slip Tester, etc.
- Power requirement - 100-240 V AC 50/60 Hz
- Power consumption - 40 W
- Operating temperature range - -20°C/-4°F to 70°C/158°F
- Compressed air input range - 87-123PSI/6-8.5 bar/600-850 kPa
- Compressed air input flow - 280 ltr/min (10.0 cfm)
- Nitrogen purity - 96-99%
- Nitrogen output - 70 ltr/min (2.5cfm) @ 116 PSI/8 bar/800 kPa absorption pressure
- Maximum nitrogen pressure in tank - 102 PS1/7 bar/700 kPa
- Operating range - 5-90 PSI/0.3-6.2 bar/35-620 kPa
- Over pressure setting range - 0-29 PSI/0-2.0 bar/0-200 kPa
- Nitrogen purges - 0-9
- Inflator accuracy - ±1 PSI/0.07 bar/7 kPa
- Resolution - 1 PSI/0.1 bar/5kPa
- Units of measurement - PSI/bar/kPa
- Dimensions (height x width x depth) - 1310 x 720 x 620 mm
- Net weight - 110 kg
- Gross weight - 135 kg
- Generates nitrogen from compressed air
- Fully automated, fully programmable, micro-processor controlled conversation system
- Self-diagnostic features
- 2 pre-filters
- 50L internal nitrogen storage tank
- Adjustable over pressure setting (OPS)
- Nitrogen purge and fill cycle (N2P)
- Adjustable number of cycles
- Adjustable lower purge pressure limit
- 4 air outlets allow simultaneous topup of up to 4 tyres
- Auto-start inflation
- Automatic zero drift adjustment
- Remain at last setting
- Comprehensive diagnostics and error reporting
- Audible and visual end of the cycle signal indicators
- Large backlight LCD display
- Vandal resistant mechanical switches
- 4 numbers x 8 m/2 6ft standard hoses with single clip-on closed chuck
IPF Nitrogen Tyre Inflation System
Nitrogen Tyre Inflation System
Tyre Inflation System
T-1500-N2P Nitrogen Tyre Inflation System
T-1500-N2P
