Globoidal Cams

Globoidal Cams

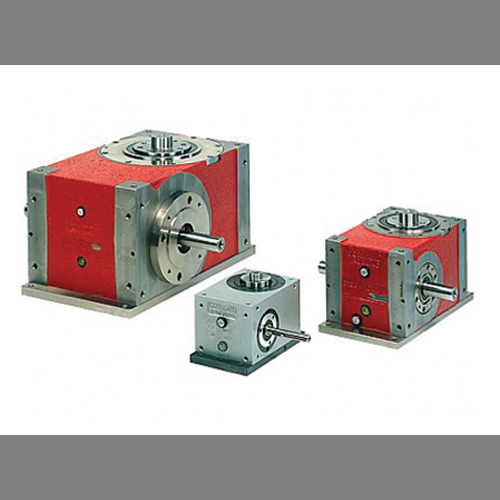

Bettinelli Automation Components Pvt Ltd offers a range of Globoidal Cams, IG Series group, in its indexing, oscillating and reciprocating drives. IG Series Group includes IG Servo Indexer, IGA140 IGA180, IGA140 and IGA108. The IG and IGA series feature an induction hardened precision globoidal cam set and solid cam follower technology, this arrangement provides a right angle input/output arrangement. IG provides a flange style output and IGA provides a shaft output. The internal globoidal cam can be utilised for rotary indexing and oscillating motions requiring anywhere from 1 to 24 stations (stops). The cam geometry allows a relatively low cam input angle which makes this particular series of drives ideal for continuous running applications (i.e., the input shaft can remain rotating but the output can be stationary). The internal globoidal cam allows the IG and IGA series to be used in either indexing or oscillating functions. Since its founding in 1953, CDS – Cam Driven Systems, an ISO 9001-2000 certified company, prides itself on being able to design and manufacture mechanical motion control products utilising cam mechanisms. CDS has sales support offices throughout the world including direct facilities in the USA, Italy, Germany and India.

  • Indexing conveyor systems
  • Rotary dial positioning tables
  • Oscillating tooling
  • High speed press machinery

  • Intermittent indexing or oscillating motions
  • 1 to 24 stop (including odd and fractional)
  • Ultra long life oil bath lubrication – zero maintenance
  • Motor/drive package available
  • Can be line shaft/chain driven
  • Cast iron alloy housings (IG50 and IG63 models are aluminium)
  • Solid cam follower technology and induction hardened cam profile
  • Output torque limiters available
  • Available in Medi-Cam Series
