Drilling Machine
Drilling Machine

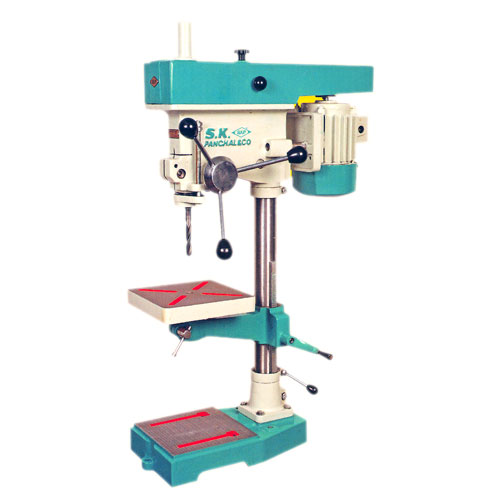

S. K. Panchal offers Drilling Machine, which has wide range of spindle speed and manual feeding for drilling. The drilling machine has hard chrome pillar, electric motor, drill chuck, chuck arbor, v-belt, switch, and fine feed attachment. The main spindle, pulley are balanced and mounted on bearing to ensure sustained accuracy.
Product & Technology News
- Drilling Capacity: 16mm
- Range of Spindle Speed: 660 – 3100 rpm
- Spindle Centre to column: 182 mm
- Spindle Travel: 115 mm
- Table Size: 230 x 230 mm
- Motor Capacity: 0.37 kw / 0.50 hp
- Overall Dimension: 610 x 350 x 1020 mm
- Precision ground to close tolerance for precision components viz main spindle and quill
- Close grained cast iron with appropriate wall sections for head stocks work tables and bases
- Ground steel tube for column
- Sturdy and streamlined construction
