Drilling Machine
Drilling Machine

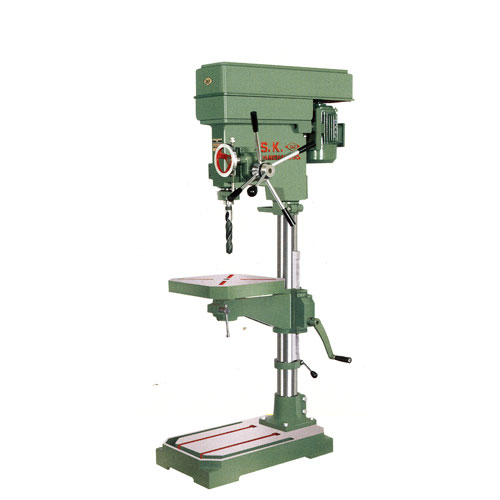

S. K. Panchal offers Drilling Machine, Model No. 25 SPR. This drilling machine has a wide range of spindle speed and manual feeding for drilling. The drilling machine has hard chrome pillar, electric motor, drill chuck, chuck arbor, v-belt, switch, and fine feed attachment. The main spindle, pulleys are balanced and mounted on bearing to ensure sustained accuracy. Other models such as 20 PR 15†C, 20 SBR-20 SFR-20 SPR, SBR-20 SFR-20 SPR, 13 SS & 13 SSR, and 6 MM HSS are also offered.
- Drilling Capacity: 25 mm
- Range of Spindle Speed: 250 – 1800 rpm
- Spindle Centre to column: 261 mm
- Spindle Travel: 139 mm
- Table Size: 358 x 358 mm
- Motor Capacity: 0.75 kw / 1 hp
- Overall Dimension: 1540 x 875 x 488 mm
- Precision ground to close tolerance for precision components viz main spindle and quill
- Close grained cast iron with appropriate wall sections for head stocks work tables and bases
- Ground steel tube for column
- Sturdy and streamlined construction
