Isolation Interface Converter

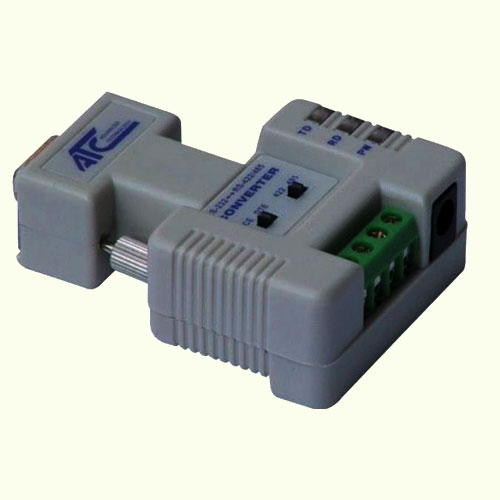

ATC-105 Isolation Interface Converter is compatible with RS-232C, RS-422, RS-485 standard and capable of converting single end RS-232 single into RS-422 or RS-485 single of balanced single. The built in photoelectric isolator can offer 3500V isolation voltage and the rapid Transient and ESD, prevent lighting strike and common code interference. Connect PC, IPC, or portable computer via a DB9 female connector at RS-232 interface, and connect RS-422, RS-485 end via convenient 4-bit terminal. The RS-485 support dual-line half duplex, namely, the only two line of RS-485 shall both send and receive data. Handshake single (e.g. RTS, Request To Send) usually controls the data direction. The inner circuit if ATC-105 Photoelectric Isolation interfaces Converter can detect data director and switch to control it automatically, conveniently to form a RS-485 network without any shake hand single. This kind of RS-485 control is fully transparent and need no software amendment for the former working modes basing on RS-232.
