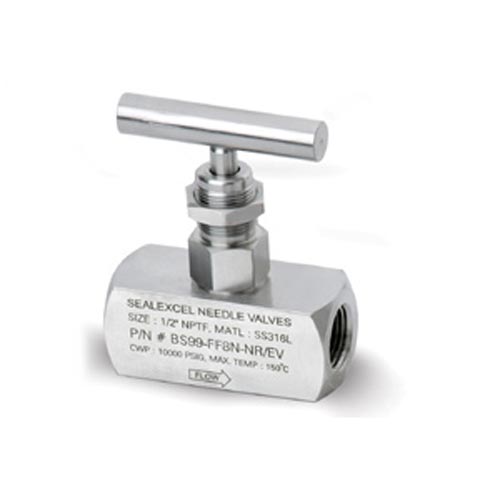

Needle Valves
Needle Valves
Sealexcel (India) Pvt. Ltd. offers Needle Valves Series.
Operating Parameters
- Pressure Rating : Upto 10,000 psig (680 bar) at CWP
- Temperature Rating :Upto 120°C
Product & Technology News
- General Plant Service
- Hydraulic and Pneumatic
- Pressuring measurement devices
- Venting
- Available in SS316
- Low operating torque
- Bar Stock Body in Straight Pattern
- Panel mountable
- Rolled and plated threads for greater strength and smoother operation.
- Anti Blow-out stem provides positive back seal in full open position.
- Stem packing below the threads protect the flow stream from lubricant contamination on the threads or washout and also protect stem thread from potential damaging effect of the media.
- Viton O-Ring and back-up Ring seal.
- Orifice size : 0.156" (4mm) and 0.250" (6.4mm)
- Flow coefficients (Cv) from 0.35 to 0.86
- Variety of stem tips to provide greater flexibility
- Variety of end configurations includes Male/Female NPT, BSP, BSPT pipe connections.
- Every valve is factory tested.
