Ball Valves
Ball Valves

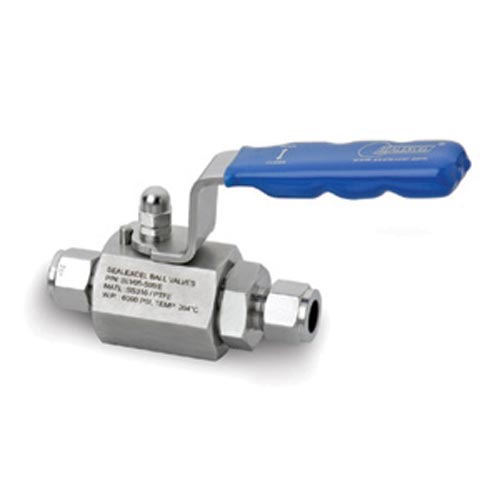

Sealexcel (India) Pvt Ltd, an ISO 9001: 2008, PED 97/23/EC and ATEX 94/9/ec certified company, offers Ball Valves, Series – BV103.
Operating Parameters
- Pressure Rating : Upto 4000 psig (272 bar) at CWP with PTFE Packing and Seat
- Seal ExcelUpto 6000 psig (408 bar) at CWP with PTFE packing and Peek Seat
- Temperature Rating : -54°C to 204°C with PTFE packing and seat
Product & Technology News
- Instrument Air Lines
- General Plant Service
- High Pressure Instrument Lines
- Available in SS316
- Two piece body design
- Bi-directional Flow
- PTFE or PEEK Ball Seat
- Bubble tight shut-off
- Anti blow-out stem
- Floating ball design provides seat wear compensation
- Low torque operation
- Quarter turn positive stop handle
- Connector thread environmentally sealed
- Variety of end configurations includes SEALEXCEL® Well-Lok Tube Fittings, Male / Female NPT, BSPT, BSPP pipe connections
- 10 mm bore ball
- Every valve is factory tested
