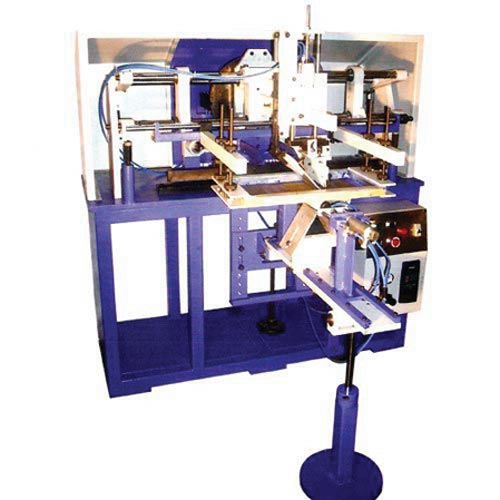

Screen Printing Machine, Auto Print 100
Screen Printing Machine, Auto Print 100
Acuprint offers a fully automatic Screen Printing Machine, Auto Print 100. These are the next generation printing machines, which are very popular amongst users. These machines are mechanically operated and are available at really affordable prices. These world class products are made by the finest of raw materials which are chosen after a stringent quality assurance checks.
Specifications:
- Built-in air inflating system for thin walled containers to maintain rigidity of diameter of the container
- AC motor and gearbox as a main drive for constant machine speed as required, depends on container size
- Mechanically operated and economical
- Selection of manual cycle with inching facility
- Auto registration unit for containers
- Adjustment facility in X-, Y-, and Z-axis of the screen
- Optional accessories for auto loading – mechanical gripper system and vacuum system
These are fully automatic screen printing machines for bottles and thin wall containers, with AC variable speed control drive to achieve desired speed as per container size.
Product & Technology News
- Regulation drive – 75 W FHP AC-geared motor 1-phase, 200 V
- Article length - max 350 mm (base to mouth)/min 80 mm
- Variable speed control – AC variable speed control
- Main drive – % HP, 3-phase 440 V AC-motor
- Pneumatic pressure – 6 kg/cm²
- Cycle per hour – 2500-3000 numbers
- Air consumption – 350 LPM
- Article diameter – max 100 mm/min 40 mm
