Pad Printing Machine
Pad Printing Machine

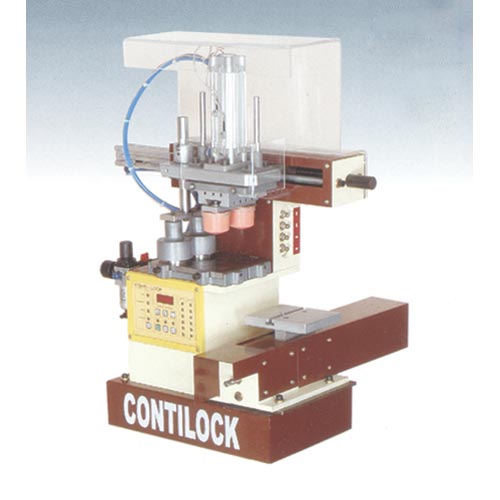

Meditek International Pvt Ltd offers a Pad Printing Machine, Model Contilock CLC-120. This is the most advanced micro processor based, pneumatically operated pick and place type pad printing machine, suitable for printing on gift items, plastic components, crockery, electrical electronics goods, home appliances, tools, glass, shoes, slippers, garments, steel products, plated components, etc. Infinitely adjustable pad height ensures consistent quality. This is achieved through a programmed soft touch machine panel. Due to its high productivity, CLC 120 is cost effective and amazingly simple to operate. The company also offers Pad Printing Machine, Pad Printing Machine, Pad Printing Machine, Pad Printing Machine, etc.
Product & Technology News
Technical specifications:
- Standard cliche plate size: 180 x 75 x 10 mm
- Maximum printing dia: 50 mm
- Printing capacity: 1200 prints/hour
- Maximum height of product: 50 mm
- Drive: Pneumatic
- Printing force: 600 N at 6 bar
- Compressed air connection: 5-6 bar working pressure
- Air consumption max: 4.8 Nm3/hr at 6 bar
- Electronic control system: With 10 inputs and 6 outputs each for peripheral units
- With 4 inputs and 4 outputs for integration into production lines
- Pad vertical stroke: Maximum 100 mm infinitely adjustable
- Speed adjustment: Infinitely adjustable via pneumatic choke
- Dimensions: 590 (L) x 500 (W) x 680 (H) mm
- Weight: 102 kg
