• Crown Industries

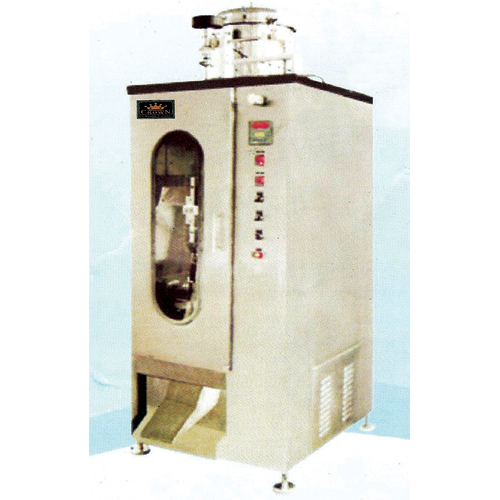

Vertical Pouch FFS Machine (Liquids), CR-L-500

Crown Industries offers a Vertical Pouch FFS Machine, Model CR-L-500, for liquid packaging. This is a fully automatic mechanically operated vertical pouch form, fill and seal (FFS) machine to pack free flow liquids with float balanced gravity flow filling system. This model is also available with a closed door option. Applications: free flow liquids such as mineral water, milk, buttermilk and soft drinks, etc. Technical specifications: feeding head – continuous gravity flow; production speed – 48-50 pouches/minute; packing range – 100 ml to 500 ml; film width – 225/240/325 mm; film thickness – 60 or 100 microns; film material – co-extruded virgin films; sealing system – continuous heating system; inner core dia of film roll – 70 mm; outer dia of the film roll – up to 350 mm; pouch style – centre sealed pillow type; pouch width – 100/110/150 mm; pouch length – up to 170 mm; power consumption – 1 kW/hour; peak power – 2 kW; power requirement – single phase, 220 V, 50 Hz; machine dimensions – 1700(H) x 800 (W) x 1200 (D); and net weight – 400 kg (approx). The company has more than 20 years of experience in the design and manufacture of packaging machines for flexible pouches. It offers a wide range of machines to produce flat pouches, gusseted pouches and stand up pouches for markets such as food and beverages, pharmaceuticals, cosmetics, chemicals, etc. The machines are easy-to-operate due to the simplicity of the mechanism. In addition to its exceptional performance the company also offers benefits in terms of reduction of floor space, operating costs and ancillary equipment.
