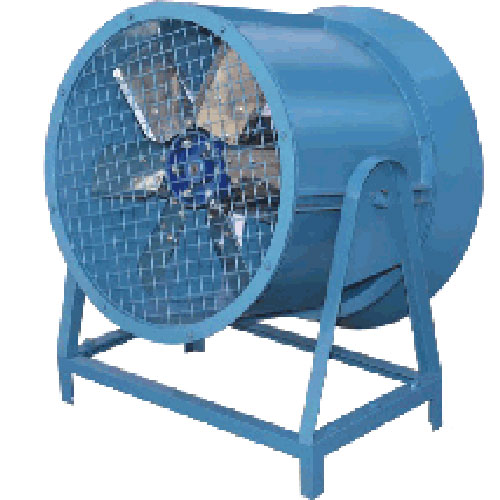

Axial Flow Fan

M P Engineering offers Axial Flow Fan. Axial flow fans - Man coolers are designed for spot cooling for men, machines, materials or for Industrial ventilation, air conditioning and fumes exhaust.
It has three types- Column mounting, Pedestal type, and Tubular type. These models have the specific features of swiveling and tilting arrangements to provide the close delivery with high velocity of Air.
Motors: Standard AC TEFC motors suitable. Flame proof motors can be use.
Construction: The casing is fabricated from mild steel sheets fitted with flanges & strong wire guard ( optional ). The Impeller of fan is made of aluminum and Dynamically balanced.
Driving Types:

• Direct Motor Drive- Impeller & motor both housed inside the casing & Impeller directly mounted on motor shaft. Suitable up to 65°C.
• V- Belt Drive- The Impeller mounted on a separate shaft supported on two ball bearings and Plummer blocks inside casing. The motor is mounted on outside of the casing and shaft is driven with V- belts. Suitable for 65°C. to 150°c
