• HPL India Private Limited

Energy Management Meters

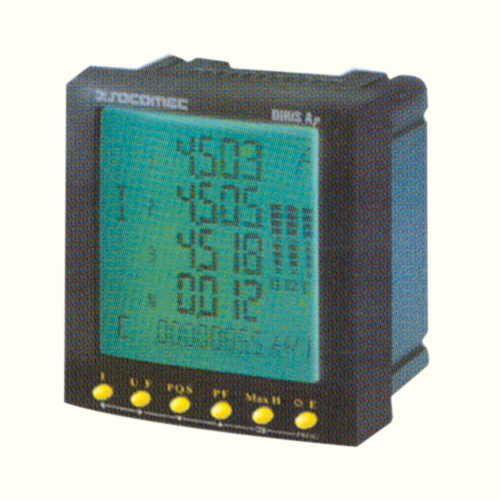

HPL India offers Energy Management Meters, Diris AP. It is of high quality and standards. It is highly reliable. Features: range - current CT ratio 1 A or 5 A on secondary and up to 10000 A on the primary; voltage - up to 700 VAC without VT up to 400 kV with VT; accuracy - class 0.5; true RMS measurements; four quadrant operation; one model for HV and LV measurement; maximum demand in kW, kVA, kVAR and I; compact DIN 96 x 96 sq.mm front display with a depth of 60 mm (80 mm including plug-in module, optional); Plug-n-Display - optional plug-in modules (harmonics, communication, analog, alarms or control/ command) enable additional functions to be added to the base unit and provides long term on-site flexibility for the end user; direct access - 6 direct access keys - I current, U/ F voltage and frequency, PQS active, reactive and apparent powers, PF power factor, Max H maximum demand, current and harmonics, (L)/ E energy and hours run; and multi-vision - large, clear, backlit display is easy to read, Simultaneous display of measured parameter values in unit, value and bar graph format, and the self adjusting contrast enables the screen to be easily viewed in all environments and from all positions.
